elasticipy.polefigure

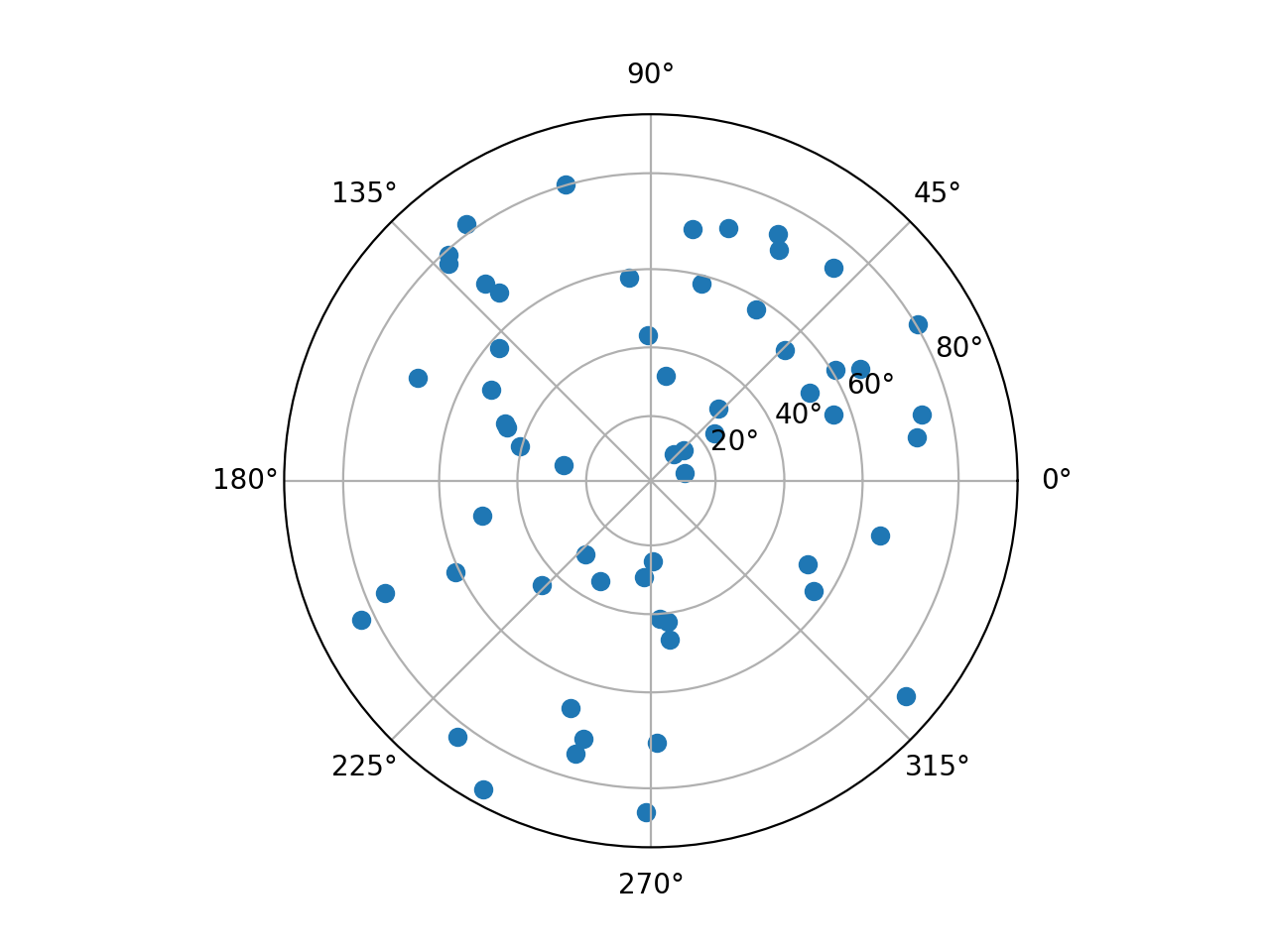

class elasticipy.polefigure.LambertScale(axis)

Bases: ScaleBase

Construct a new scale.

Notes

The following note is for scale implementers.

For back-compatibility reasons, scales take an ~matplotlib.axis.Axis object as first argument. However, this argument should not be used: a single scale object should be usable by multiple ~matplotlib.axis.Axises at the same time.

class InvertedLambertTransform(shorthand_name=None)

Bases: Transform

Parameters:

shorthand_name (str) – A string representing the “name” of the transform. The name carries no significance other than to improve the readability of str(transform) when DEBUG=True.

contains_branch(other)

Return whether the given transform is a sub-tree of this transform.

This routine uses transform equality to identify sub-trees, therefore in many situations it is object id which will be used.

For the case where the given transform represents the whole of this transform, returns True.

contains_branch_seperately(other_transform)

Return whether the given branch is a sub-tree of this transform on each separate dimension.

A common use for this method is to identify if a transform is a blended transform containing an Axes’ data transform. e.g.:

x_isdata, y_isdata = trans.contains_branch_seperately(ax.transData)

property depth

Return the number of transforms which have been chained together to form this Transform instance.

Note

For the special case of a Composite transform, the maximum depth of the two is returned.

frozen()

Return a frozen copy of this transform node. The frozen copy will not be updated when its children change. Useful for storing a previously known state of a transform where copy.deepcopy() might normally be used.

get_affine()

Get the affine part of this transform.

get_matrix()

Get the matrix for the affine part of this transform.

has_inverse = True

True if this transform has a corresponding inverse transform.

input_dims = 1

The number of input dimensions of this transform. Must be overridden (with integers) in the subclass.

invalidate()

Invalidate this TransformNode and triggers an invalidation of its ancestors. Should be called any time the transform changes.

inverted()

Return the corresponding inverse transformation.

It holds x == self.inverted().transform(self.transform(x)).

The return value of this method should be treated as temporary. An update to self does not cause a corresponding update to its inverted copy.

is_affine = False

is_bbox = False

is_separable = True

True if this transform is separable in the x- and y- dimensions.

output_dims = 1

The number of output dimensions of this transform. Must be overridden (with integers) in the subclass.

pass_through = False

If pass_through is True, all ancestors will always be invalidated, even if ‘self’ is already invalid.

set_children(*children)

Set the children of the transform, to let the invalidation system know which transforms can invalidate this transform. Should be called from the constructor of any transforms that depend on other transforms.

transform(values)

Apply this transformation on the given array of values.

Parameters:

values (array-like) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_affine(values)

Apply only the affine part of this transformation on the given array of values.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally a no-op. In affine transformations, this is equivalent to transform(values).

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_angles(angles, pts, radians=False, pushoff=1e-05)

Transform a set of angles anchored at specific locations.

Parameters:

• angles ((N,) array-like) – The angles to transform.

• pts ((N, 2) array-like) – The points where the angles are anchored.

• radians (bool, default: False) – Whether angles are radians or degrees.

• pushoff (float) – For each point in pts and angle in angles, the transformed angle is computed by transforming a segment of length pushoff starting at that point and making that angle relative to the horizontal axis, and measuring the angle between the horizontal axis and the transformed segment.

Return type:

(N,) array

transform_bbox(bbox)

Transform the given bounding box.

For smarter transforms including caching (a common requirement in Matplotlib), see TransformedBbox.

transform_non_affine(r)

Apply only the non-affine part of this transformation.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally equivalent to transform(values). In affine transformations, this is always a no-op.

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_path(path)

Apply the transform to .Path path, returning a new .Path.

In some cases, this transform may insert curves into the path that began as line segments.

transform_path_affine(path)

Apply the affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_path_non_affine(path)

Apply the non-affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_point(point)

Return a transformed point.

This function is only kept for backcompatibility; the more general .transform method is capable of transforming both a list of points and a single point.

The point is given as a sequence of length input_dims. The transformed point is returned as a sequence of length output_dims.

class LambertTransform(shorthand_name=None)

Bases: Transform

Parameters:

shorthand_name (str) – A string representing the “name” of the transform. The name carries no significance other than to improve the readability of str(transform) when DEBUG=True.

contains_branch(other)

Return whether the given transform is a sub-tree of this transform.

This routine uses transform equality to identify sub-trees, therefore in many situations it is object id which will be used.

For the case where the given transform represents the whole of this transform, returns True.

contains_branch_seperately(other_transform)

Return whether the given branch is a sub-tree of this transform on each separate dimension.

A common use for this method is to identify if a transform is a blended transform containing an Axes’ data transform. e.g.:

x_isdata, y_isdata = trans.contains_branch_seperately(ax.transData)

property depth

Return the number of transforms which have been chained together to form this Transform instance.

Note

For the special case of a Composite transform, the maximum depth of the two is returned.

frozen()

Return a frozen copy of this transform node. The frozen copy will not be updated when its children change. Useful for storing a previously known state of a transform where copy.deepcopy() might normally be used.

get_affine()

Get the affine part of this transform.

get_matrix()

Get the matrix for the affine part of this transform.

has_inverse = True

True if this transform has a corresponding inverse transform.

input_dims = 1

The number of input dimensions of this transform. Must be overridden (with integers) in the subclass.

invalidate()

Invalidate this TransformNode and triggers an invalidation of its ancestors. Should be called any time the transform changes.

inverted()

Return the corresponding inverse transformation.

It holds x == self.inverted().transform(self.transform(x)).

The return value of this method should be treated as temporary. An update to self does not cause a corresponding update to its inverted copy.

is_affine = False

is_bbox = False

is_separable = True

True if this transform is separable in the x- and y- dimensions.

output_dims = 1

The number of output dimensions of this transform. Must be overridden (with integers) in the subclass.

pass_through = False

If pass_through is True, all ancestors will always be invalidated, even if ‘self’ is already invalid.

set_children(*children)

Set the children of the transform, to let the invalidation system know which transforms can invalidate this transform. Should be called from the constructor of any transforms that depend on other transforms.

transform(values)

Apply this transformation on the given array of values.

Parameters:

values (array-like) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_affine(values)

Apply only the affine part of this transformation on the given array of values.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally a no-op. In affine transformations, this is equivalent to transform(values).

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_angles(angles, pts, radians=False, pushoff=1e-05)

Transform a set of angles anchored at specific locations.

Parameters:

• angles ((N,) array-like) – The angles to transform.

• pts ((N, 2) array-like) – The points where the angles are anchored.

• radians (bool, default: False) – Whether angles are radians or degrees.

• pushoff (float) – For each point in pts and angle in angles, the transformed angle is computed by transforming a segment of length pushoff starting at that point and making that angle relative to the horizontal axis, and measuring the angle between the horizontal axis and the transformed segment.

Return type:

(N,) array

transform_bbox(bbox)

Transform the given bounding box.

For smarter transforms including caching (a common requirement in Matplotlib), see TransformedBbox.

transform_non_affine(theta)

Apply only the non-affine part of this transformation.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally equivalent to transform(values). In affine transformations, this is always a no-op.

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_path(path)

Apply the transform to .Path path, returning a new .Path.

In some cases, this transform may insert curves into the path that began as line segments.

transform_path_affine(path)

Apply the affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_path_non_affine(path)

Apply the non-affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_point(point)

Return a transformed point.

This function is only kept for backcompatibility; the more general .transform method is capable of transforming both a list of points and a single point.

The point is given as a sequence of length input_dims. The transformed point is returned as a sequence of length output_dims.

get_transform()

Return the .Transform object associated with this scale.

limit_range_for_scale(vmin, vmax, minpos)

Return the range vmin, vmax, restricted to the domain supported by this scale (if any).

minpos should be the minimum positive value in the data. This is used by log scales to determine a minimum value.

name = 'lambert'

set_default_locators_and_formatters(axis)

Set the locators and formatters of axis to instances suitable for this scale.

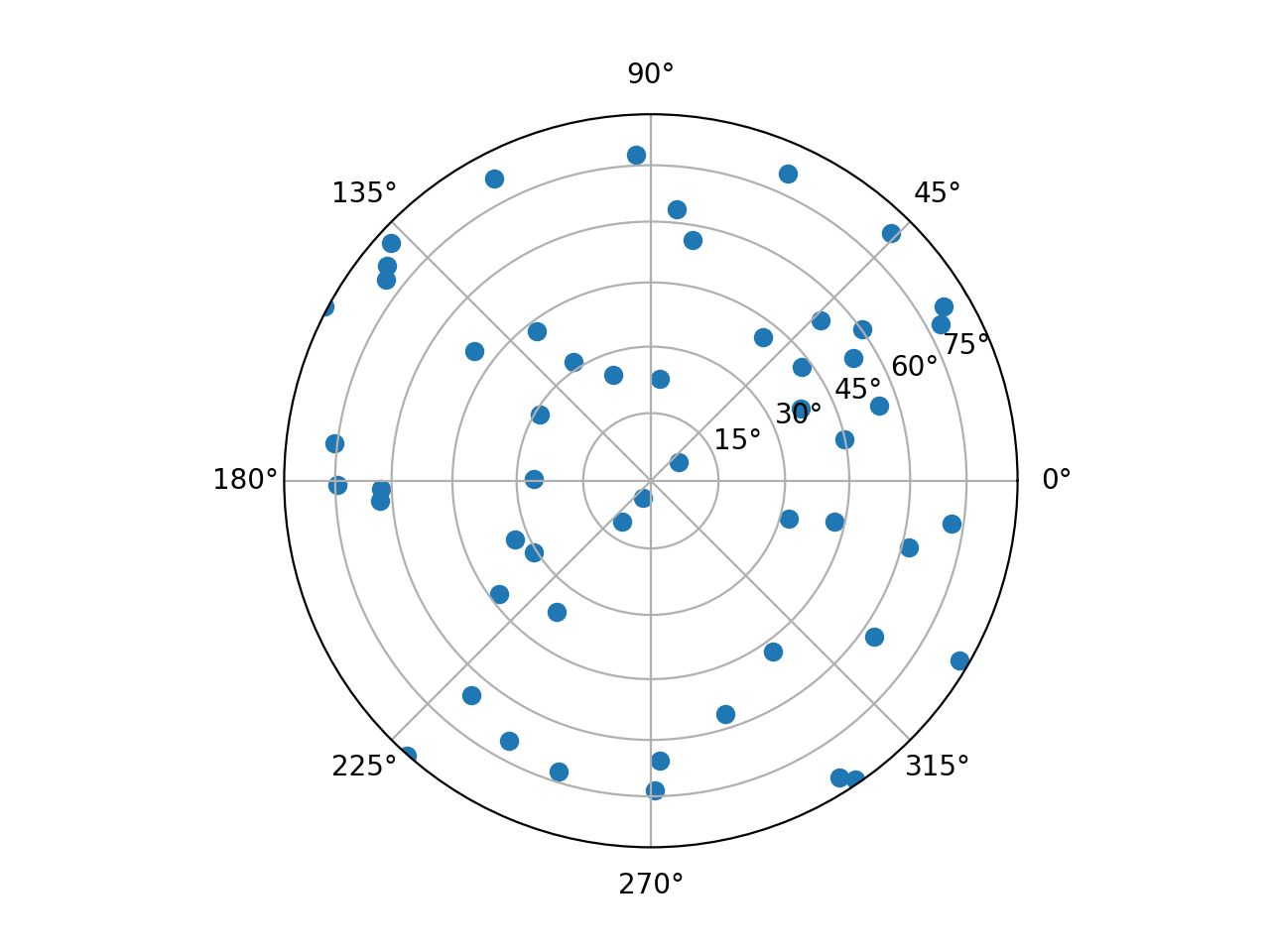

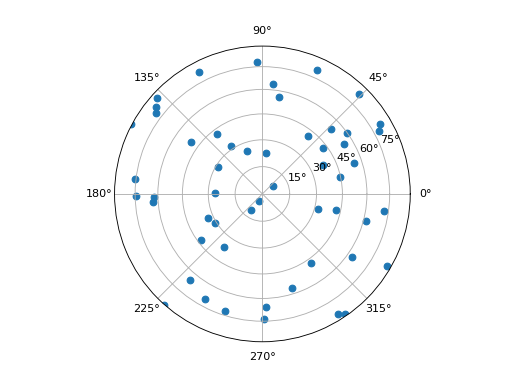

class elasticipy.polefigure.StereographicScale(axis)

Bases: ScaleBase

Construct a new scale.

Notes

The following note is for scale implementers.

For back-compatibility reasons, scales take an ~matplotlib.axis.Axis object as first argument. However, this argument should not be used: a single scale object should be usable by multiple ~matplotlib.axis.Axises at the same time.

class InvertedStereographicTransform(shorthand_name=None)

Bases: Transform

Parameters:

shorthand_name (str) – A string representing the “name” of the transform. The name carries no significance other than to improve the readability of str(transform) when DEBUG=True.

contains_branch(other)

Return whether the given transform is a sub-tree of this transform.

This routine uses transform equality to identify sub-trees, therefore in many situations it is object id which will be used.

For the case where the given transform represents the whole of this transform, returns True.

contains_branch_seperately(other_transform)

Return whether the given branch is a sub-tree of this transform on each separate dimension.

A common use for this method is to identify if a transform is a blended transform containing an Axes’ data transform. e.g.:

x_isdata, y_isdata = trans.contains_branch_seperately(ax.transData)

property depth

Return the number of transforms which have been chained together to form this Transform instance.

Note

For the special case of a Composite transform, the maximum depth of the two is returned.

frozen()

Return a frozen copy of this transform node. The frozen copy will not be updated when its children change. Useful for storing a previously known state of a transform where copy.deepcopy() might normally be used.

get_affine()

Get the affine part of this transform.

get_matrix()

Get the matrix for the affine part of this transform.

has_inverse = True

True if this transform has a corresponding inverse transform.

input_dims = 1

The number of input dimensions of this transform. Must be overridden (with integers) in the subclass.

invalidate()

Invalidate this TransformNode and triggers an invalidation of its ancestors. Should be called any time the transform changes.

inverted()

Return the corresponding inverse transformation.

It holds x == self.inverted().transform(self.transform(x)).

The return value of this method should be treated as temporary. An update to self does not cause a corresponding update to its inverted copy.

is_affine = False

is_bbox = False

is_separable = True

True if this transform is separable in the x- and y- dimensions.

output_dims = 1

The number of output dimensions of this transform. Must be overridden (with integers) in the subclass.

pass_through = False

If pass_through is True, all ancestors will always be invalidated, even if ‘self’ is already invalid.

set_children(*children)

Set the children of the transform, to let the invalidation system know which transforms can invalidate this transform. Should be called from the constructor of any transforms that depend on other transforms.

transform(values)

Apply this transformation on the given array of values.

Parameters:

values (array-like) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_affine(values)

Apply only the affine part of this transformation on the given array of values.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally a no-op. In affine transformations, this is equivalent to transform(values).

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_angles(angles, pts, radians=False, pushoff=1e-05)

Transform a set of angles anchored at specific locations.

Parameters:

• angles ((N,) array-like) – The angles to transform.

• pts ((N, 2) array-like) – The points where the angles are anchored.

• radians (bool, default: False) – Whether angles are radians or degrees.

• pushoff (float) – For each point in pts and angle in angles, the transformed angle is computed by transforming a segment of length pushoff starting at that point and making that angle relative to the horizontal axis, and measuring the angle between the horizontal axis and the transformed segment.

Return type:

(N,) array

transform_bbox(bbox)

Transform the given bounding box.

For smarter transforms including caching (a common requirement in Matplotlib), see TransformedBbox.

transform_non_affine(r)

Apply only the non-affine part of this transformation.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally equivalent to transform(values). In affine transformations, this is always a no-op.

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_path(path)

Apply the transform to .Path path, returning a new .Path.

In some cases, this transform may insert curves into the path that began as line segments.

transform_path_affine(path)

Apply the affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_path_non_affine(path)

Apply the non-affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_point(point)

Return a transformed point.

This function is only kept for backcompatibility; the more general .transform method is capable of transforming both a list of points and a single point.

The point is given as a sequence of length input_dims. The transformed point is returned as a sequence of length output_dims.

class StereographicTransform(shorthand_name=None)

Bases: Transform

Parameters:

shorthand_name (str) – A string representing the “name” of the transform. The name carries no significance other than to improve the readability of str(transform) when DEBUG=True.

contains_branch(other)

Return whether the given transform is a sub-tree of this transform.

This routine uses transform equality to identify sub-trees, therefore in many situations it is object id which will be used.

For the case where the given transform represents the whole of this transform, returns True.

contains_branch_seperately(other_transform)

Return whether the given branch is a sub-tree of this transform on each separate dimension.

A common use for this method is to identify if a transform is a blended transform containing an Axes’ data transform. e.g.:

x_isdata, y_isdata = trans.contains_branch_seperately(ax.transData)

property depth

Return the number of transforms which have been chained together to form this Transform instance.

Note

For the special case of a Composite transform, the maximum depth of the two is returned.

frozen()

Return a frozen copy of this transform node. The frozen copy will not be updated when its children change. Useful for storing a previously known state of a transform where copy.deepcopy() might normally be used.

get_affine()

Get the affine part of this transform.

get_matrix()

Get the matrix for the affine part of this transform.

has_inverse = True

True if this transform has a corresponding inverse transform.

input_dims = 1

The number of input dimensions of this transform. Must be overridden (with integers) in the subclass.

invalidate()

Invalidate this TransformNode and triggers an invalidation of its ancestors. Should be called any time the transform changes.

inverted()

Return the corresponding inverse transformation.

It holds x == self.inverted().transform(self.transform(x)).

The return value of this method should be treated as temporary. An update to self does not cause a corresponding update to its inverted copy.

is_affine = False

is_bbox = False

is_separable = True

True if this transform is separable in the x- and y- dimensions.

output_dims = 1

The number of output dimensions of this transform. Must be overridden (with integers) in the subclass.

pass_through = False

If pass_through is True, all ancestors will always be invalidated, even if ‘self’ is already invalid.

set_children(*children)

Set the children of the transform, to let the invalidation system know which transforms can invalidate this transform. Should be called from the constructor of any transforms that depend on other transforms.

transform(values)

Apply this transformation on the given array of values.

Parameters:

values (array-like) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_affine(values)

Apply only the affine part of this transformation on the given array of values.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally a no-op. In affine transformations, this is equivalent to transform(values).

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_angles(angles, pts, radians=False, pushoff=1e-05)

Transform a set of angles anchored at specific locations.

Parameters:

• angles ((N,) array-like) – The angles to transform.

• pts ((N, 2) array-like) – The points where the angles are anchored.

• radians (bool, default: False) – Whether angles are radians or degrees.

• pushoff (float) – For each point in pts and angle in angles, the transformed angle is computed by transforming a segment of length pushoff starting at that point and making that angle relative to the horizontal axis, and measuring the angle between the horizontal axis and the transformed segment.

Return type:

(N,) array

transform_bbox(bbox)

Transform the given bounding box.

For smarter transforms including caching (a common requirement in Matplotlib), see TransformedBbox.

transform_non_affine(theta)

Apply only the non-affine part of this transformation.

transform(values) is always equivalent to transform_affine(transform_non_affine(values)).

In non-affine transformations, this is generally equivalent to transform(values). In affine transformations, this is always a no-op.

Parameters:

values (array) – The input values as an array of length input_dims or shape (N, input_dims).

Returns:

The output values as an array of length output_dims or shape (N, output_dims), depending on the input.

Return type:

array

transform_path(path)

Apply the transform to .Path path, returning a new .Path.

In some cases, this transform may insert curves into the path that began as line segments.

transform_path_affine(path)

Apply the affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_path_non_affine(path)

Apply the non-affine part of this transform to .Path path, returning a new .Path.

transform_path(path) is equivalent to transform_path_affine(transform_path_non_affine(values)).

transform_point(point)

Return a transformed point.

This function is only kept for backcompatibility; the more general .transform method is capable of transforming both a list of points and a single point.

The point is given as a sequence of length input_dims. The transformed point is returned as a sequence of length output_dims.

get_transform()

Return the .Transform object associated with this scale.

limit_range_for_scale(vmin, vmax, minpos)

Return the range vmin, vmax, restricted to the domain supported by this scale (if any).

minpos should be the minimum positive value in the data. This is used by log scales to determine a minimum value.

name = 'stereographic'

set_default_locators_and_formatters(axis)

Set the locators and formatters of axis to instances suitable for this scale.

elasticipy.polefigure.add_polefigure(fig, *args, projection='stereographic', **kwargs)

Add a pole figure to the figure object.

Parameters:

• fig (matplotlib.figure.Figure) – Handle to an existing figure

• args (list) – Positional arguments to pass to the subplot constructor

• projection (str, optional) – Projection to use. It can be ‘stereographic’ (default), ‘equal area’ or ‘lambert’ (which is equivalent to equal area).

• kwargs – Keyword arguments to pass to the subplot constructor

Returns:

Handle to the added axes

Return type:

matplotlib.axes._subplots.AxesSubplot

Examples

Make the stereographic projection of random points on the unit sphere:

import numpy as np
from elasticipy.polefigure import add_polefigure
from matplotlib import pyplot as plt

coords = np.random.normal(size=(100, 3))   # Random point in 3D space
r = np.linalg.norm(coords, axis=1)  # Convert cartesian to polar coordinates
theta = np.arccos(coords[:,2] / r)  # colatitude
phi = np.arctan2(coords[:,1], coords[:, 0]) # azimuth

fig = plt.figure()
ax = add_polefigure(fig)
ax.scatter(phi, theta)
ax.set_rlim(0.0, np.pi / 2)    # Ensure that the scaling is appropriate
fig.show()

(png, hires.png, pdf)

Make the Lambert projection of random points on the unit sphere:

import numpy as np
from elasticipy.polefigure import add_polefigure
from matplotlib import pyplot as plt

coords = np.random.normal(size=(100, 3))   # Random point in 3D space
r = np.linalg.norm(coords, axis=1)  # Convert cartesian to polar coordinates
theta = np.arccos(coords[:,2] / r)  # colatitude
phi = np.arctan2(coords[:,1], coords[:, 0]) # azimuth

fig = plt.figure()
ax = add_polefigure(fig, projection='lambert')
ax.scatter(phi, theta)
ax.set_rlim(0.0, np.pi / 2)    # Ensure that the scaling is appropriate
fig.show()

(png, hires.png, pdf)
