Elasticipy.crystal_texture

class elasticipy.crystal_texture.CompositeTexture(texture_list)[source]

Bases: object

Create a mix of crystal textures

Parameters:: texture_list (list of CrystalTexture) – List of crystal textures to mix

mean_tensor(tensor)[source]

Compute the weighted average of a tensor, considering each texture component separately.

Parameters:: tensor (FourthOrderTensor) – Reference tensor (unrotated)
Return type:: FourthOrderTensor

Examples

Let consider a mixture of Goss and fibre tensor (with phi1=0 and phi2=0):

>>> from elasticipy.crystal_texture import DiscreteTexture, FibreTexture
>>> from elasticipy.tensors.elasticity import StiffnessTensor
>>> t = DiscreteTexture.Goss() + FibreTexture.from_Euler(phi1=0.0, phi2=0.0)
>>> t
Mixture of crystallographic textures
 Wgt.  Type      Component
 ------------------------------------------------------------
 1.00  discrete  φ1=0.00°, ϕ=45.00°, φ2=0.00°
 1.00  fibre     φ1= 0.0°, φ2= 0.0°

Then, assume that the stiffness tensor is defined as follows:

>>> C = StiffnessTensor.cubic(C11=186, C12=134, C44=77) # mp-30

The ODF-weighted Voigt average can be computed as follows:

>>> Cvoigt = t.mean_tensor(C)
>>> Cvoigt
Stiffness tensor (in Voigt mapping):
[[ 1.86000000e+02  1.34000000e+02  1.34000000e+02  0.00000000e+00
   0.00000000e+00  0.00000000e+00]
 [ 1.34000000e+02  2.24250000e+02  9.57500000e+01  6.96664948e-15
   0.00000000e+00  0.00000000e+00]
 [ 1.34000000e+02  9.57500000e+01  2.24250000e+02 -2.83236976e-15
   0.00000000e+00  0.00000000e+00]
 [ 0.00000000e+00  2.85362012e-16  8.15320034e-17  2.58750000e+01
   0.00000000e+00  0.00000000e+00]
 [ 0.00000000e+00  0.00000000e+00  0.00000000e+00  0.00000000e+00
   5.77500000e+01 -5.48414542e-17]
 [ 0.00000000e+00  0.00000000e+00  0.00000000e+00  0.00000000e+00
   5.48414542e-17  5.77500000e+01]]

Alternatively, on can directly use the following syntax:

>>> Cvoigt = C * t

plot_as_pole_figure(miller, fig=None, ax=None, projection='lambert')[source]

Plot the pole figure of the composite texture, given a set of Miller indices

Parameters:

miller (orix.vector.miller.Miller) – Miller indices of directions/planes to plot
projection (str, optional) – Type of projection to use, it can be either stereographic or Lambert
fig (matplotlib.figure.Figure, optional) – Handle to existing figure, if needed
ax (matplotlib.projections.polar.PolarAxes, optional) – Axes to plot on
kwargs – Keyword arguments to pass to matplotlib’s scatter/plot functions

Returns:

matplotlib.figure.Figure – Handle to figure
matplotlib.projections.polar.PolarAxes – Axes where the pole figure is plotted

Examples

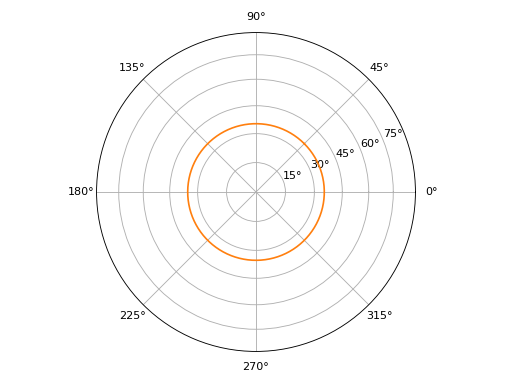

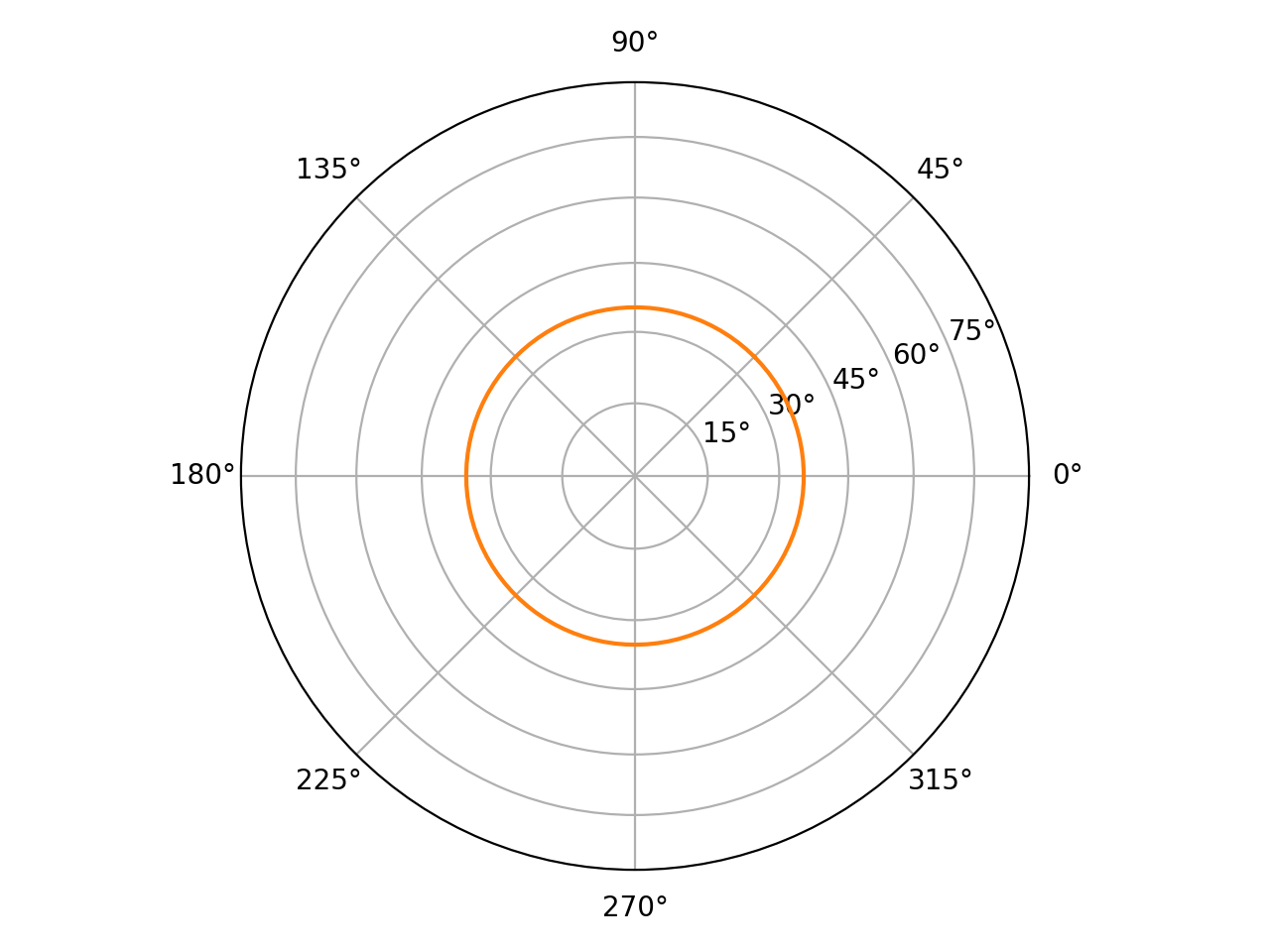

Create a mixture of uniform of gamma and alpha fibre texture, and plot the corresponding [1,0,0] pole figure:

from elasticipy.crystal_texture import FibreTexture
from orix.vector import Miller
from orix.crystal_map import Phase

texture = FibreTexture.alpha() + FibreTexture.gamma()
phase = Phase(point_group='m3m')
miller = Miller([1,1,0], phase=phase)
texture.plot_as_pole_figure(miller)

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-1.png

sample(num=50, seed=None)[source]

Generate a random sample of orientations from the composite texture.

Parameters:

num (int, optional) – Number of orientations to generate
seed (int, optional) – Seed for random number generator

Returns:

Random orientations from the given texture

Return type:

orix.quaternion.Orientation

Examples

Create a balanced mixture of Goss and Brass texture:

>>> from elasticipy.crystal_texture import DiscreteTexture
>>> goss = DiscreteTexture.Goss()
>>> brass = DiscreteTexture.brass()
>>> texture = goss + brass
>>> print(texture)
Mixture of crystallographic textures
 Wgt.  Type      Component
 ------------------------------------------------------------
 1.00  discrete  φ1=0.00°, ϕ=45.00°, φ2=0.00°
 1.00  discrete  φ1=35.26°, ϕ=45.00°, φ2=0.00°

Now generate a set of 1000 orientations from this texture:

>>> o = texture.sample(num=1000, seed=123) # Use seed to ensure reproducibility

One can check that around 50% of these orientations correspond to that of Goss:

>>> np.count_nonzero((o * ~goss.orientation).angle == 0.)
530

whereas all the other orientations correspond to brass:

>>> np.count_nonzero((o * ~brass.orientation).angle == 0.)
470

class elasticipy.crystal_texture.CrystalTexture[source]

Bases: ABC

mean_tensor(tensor)[source]

Perform the texture-weighted mean of a 4th-order tensor.

Parameters:: tensor (SymmetricFourthOrderTensor) – Reference tensor (unrotated)
Returns:: mean value of the rotated tensor
Return type:: SymmetricFourthOrderTensor

plot_as_pole_figure(miller, projection='lambert', fig=None, ax=None, **kwargs)[source]

Plot the pole figure of the crystallographic texture

Parameters:

miller (orix.vector.miller.Miller) – Miller indices of directions/planes to plot
projection (str, optional) – Type of projection to use, it can be either stereographic or Lambert
fig (matplotlib.figure.Figure, optional) – Handle to existing figure, if needed
ax (matplotlib.projections.polar.PolarAxes, optional) – Axes to plot on
kwargs – Keyword arguments to pass to matplotlib’s scatter/plot functions

Returns:

matplotlib.figure.Figure – Handle to figure
matplotlib.projections.polar.PolarAxes – Axes where the pole figure is plotted

Examples

Plot the [100] pole figure of Goss texture:

from elasticipy.crystal_texture import DiscreteTexture
from orix.vector import Miller
from orix.crystal_map import Phase

goss = DiscreteTexture.Goss()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,0,0], phase=phase)
goss.plot_as_pole_figure(miller.symmetrise(unique=True))

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-2.png

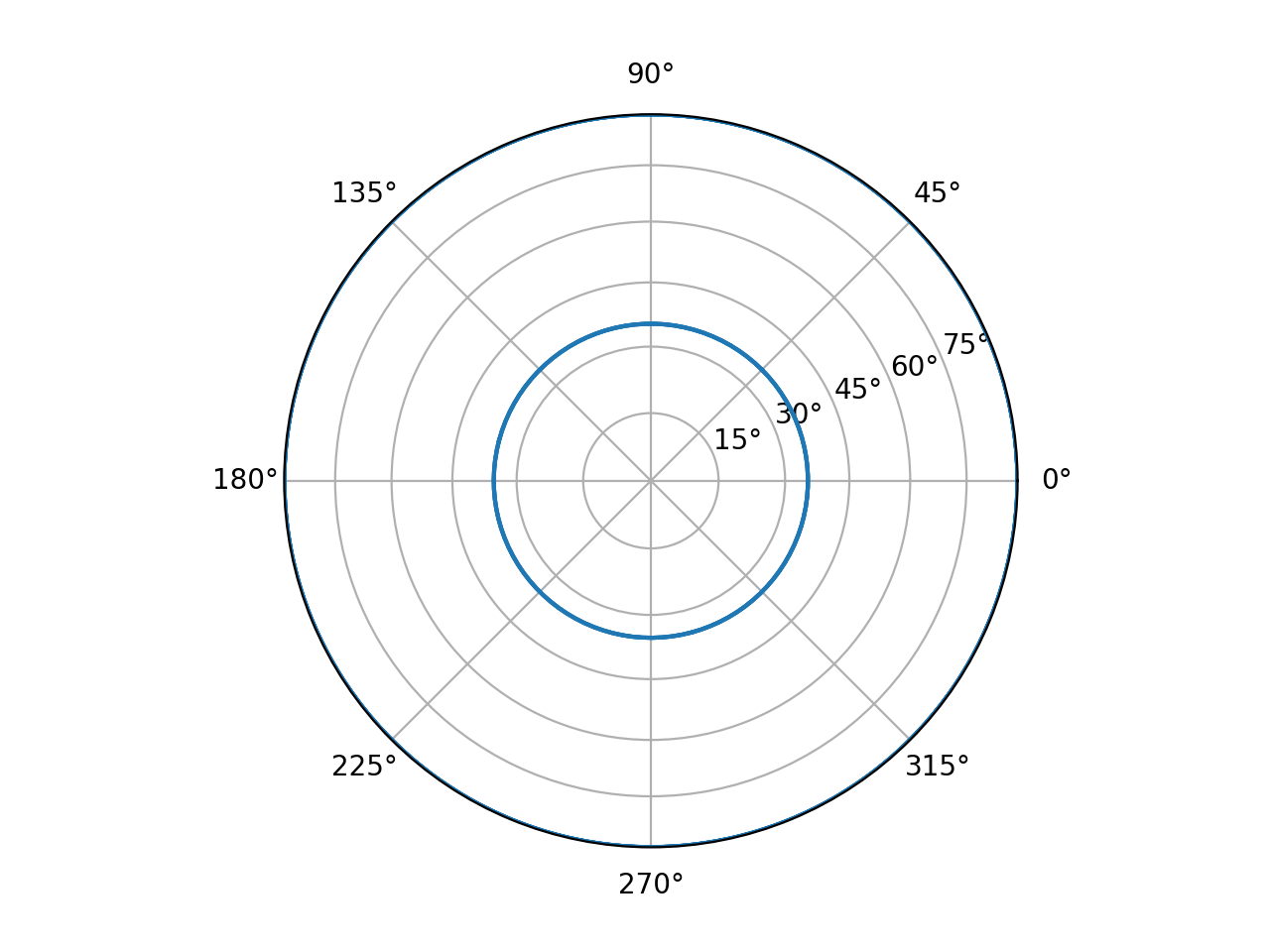

Plot the [110] pole figure of the gamma fibre texture:

from elasticipy.crystal_texture import FibreTexture
from orix.vector import Miller
from orix.crystal_map import Phase

gamma = FibreTexture.gamma()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,1,0], phase=phase)
gamma.plot_as_pole_figure(miller.symmetrise(unique=True))

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-3.png

sample(num=50, seed=None)[source]

Generate a random sample from the texture component

Parameters:

num (int, optional) – Number of random orientations to generate. Default is 50.
seed (int, optional) – Seed to use for generating random numbers. Default is None.

Returns:

Random orientations from the given texture

Return type:

orix.quaternion.Orientation

Examples

Generate 50 orientations from uniform distribution:

>>> from elasticipy.crystal_texture import UniformTexture
>>> o = UniformTexture().sample()

Generate 10 orientations from gamma-fibre

>>> from elasticipy.crystal_texture import FibreTexture
>>> o = FibreTexture.gamma().sample(num=10)

class elasticipy.crystal_texture.DiscreteTexture(orientation)[source]

Bases: CrystalTexture

Class to handle classical crystallographic texture.

Notes

This class implements the crystallographic textures listed by [Lohmuller]

References

[Lohmuller]

Lohmuller, P.; Peltier, L.; Hazotte, A.; Zollinger, J.; Laheurte, P.; Fleury, E. Variations of the Elastic Properties of the CoCrFeMnNi High Entropy Alloy Deformed by Groove Cold Rolling. Materials 2018, 11, 1337. https://doi.org/10.3390/ma11081337

Create a single-orientation crystallographic texture.

Parameters:: orientation (orix.quaternion.orientation.Orientation) – Orientation of the crystals

classmethod A()[source]

Create an “A” crystallographic texture: {110}<111>

Return type:: DiscreteTexture

See also

cube: Create a Cube single-orientation crystallographic texture
P: Create a P single-orientation crystallographic texture
S: Create an S single-orientation crystallographic texture

classmethod CuT()[source]

Create a CuT crystallographic texture: {552}<115>

Return type:: DiscreteTexture

See also

A: Create an A single-orientation crystallographic texture
P: Create a P single-orientation crystallographic texture
S: Create an S single-orientation crystallographic texture

classmethod Goss()[source]

Create a Goss crystallographic texture: {110}<100>

Return type:: DiscreteTexture

See also

A: Create an A single-orientation crystallographic texture
brass: Create a Brass single-orientation crystallographic texture
copper: Create a Copper single-orientation crystallographic texture
cube: Create a Cube single-orientation crystallographic texture
CuT: Create a CuT single-orientation crystallographic texture
GossBrass: Create a Goss-Brass single-orientation crystallographic texture
P: Create a P single-orientation crystallographic texture
S: Create an S single-orientation crystallographic texture

classmethod GossBrass()[source]

Create a Goss/Brass crystallographic texture: {110}<115>

Return type:: DiscreteTexture

See also

brass: Create a Brass single-orientation crystallographic texture
copper: Create a Copper single-orientation crystallographic texture
Goss: Create a Goss single-orientation crystallographic texture

classmethod P()[source]

Create a “P”” crystallographic texture: {011}<211>

Return type:: DiscreteTexture

See also

A: Create an A single-orientation crystallographic texture
cube: Create a Cube single-orientation crystallographic texture
S: Create an S single-orientation crystallographic texture

classmethod S()[source]

Create an “S” crystallographic texture: {123}<634>

Return type:: DiscreteTexture

See also

A: Create an A single-orientation crystallographic texture
CuT: Create a CuT single-orientation crystallographic texture
P: Create a P single-orientation crystallographic texture

classmethod brass()[source]

Create a Brass crystallographic texture: {110}<112>

Return type:: DiscreteTexture

See also

copper: Create a Copper single-orientation crystallographic texture
cube: Create a Cube single-orientation crystallographic texture
GossBrass: Create a Goss-Brass single-orientation crystallographic texture

classmethod copper()[source]

Create a copper crystallographic texture: {112}<111>

Return type:: DiscreteTexture

See also

brass: Create a Brass single-orientation crystallographic texture
Goss: Create a Goss single-orientation crystallographic texture
GossBrass: Create a Goss-Brass single-orientation crystallographic texture

classmethod cube()[source]

Create a Cube crystallographic texture: {100}<100>

Return type:: DiscreteTexture

See also

A: Create a A single-orientation crystallographic texture
brass: Create a Brass single-orientation crystallographic texture
copper: Create a Copper single-orientation crystallographic texture
CuT: Create a CuT single-orientation crystallographic texture
Goss: Create a Goss single-orientation crystallographic texture
GossBrass: Create a Goss-Brass single-orientation crystallographic texture
P: Create a P single-orientation crystallographic texture
S: Create an S single-orientation crystallographic texture

mean_tensor(tensor)[source]

Perform the texture-weighted mean of a 4th-order tensor.

Parameters:: tensor (SymmetricFourthOrderTensor) – Reference tensor (unrotated)
Returns:: mean value of the rotated tensor
Return type:: SymmetricFourthOrderTensor

plot_as_pole_figure(miller, projection='lambert', fig=None, ax=None, **kwargs)[source]

Plot the pole figure of the crystallographic texture

Parameters:

miller (orix.vector.miller.Miller) – Miller indices of directions/planes to plot
projection (str, optional) – Type of projection to use, it can be either stereographic or Lambert
fig (matplotlib.figure.Figure, optional) – Handle to existing figure, if needed
ax (matplotlib.projections.polar.PolarAxes, optional) – Axes to plot on
kwargs – Keyword arguments to pass to matplotlib’s scatter/plot functions

Returns:

matplotlib.figure.Figure – Handle to figure
matplotlib.projections.polar.PolarAxes – Axes where the pole figure is plotted

Examples

Plot the [100] pole figure of Goss texture:

from elasticipy.crystal_texture import DiscreteTexture
from orix.vector import Miller
from orix.crystal_map import Phase

goss = DiscreteTexture.Goss()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,0,0], phase=phase)
goss.plot_as_pole_figure(miller.symmetrise(unique=True))

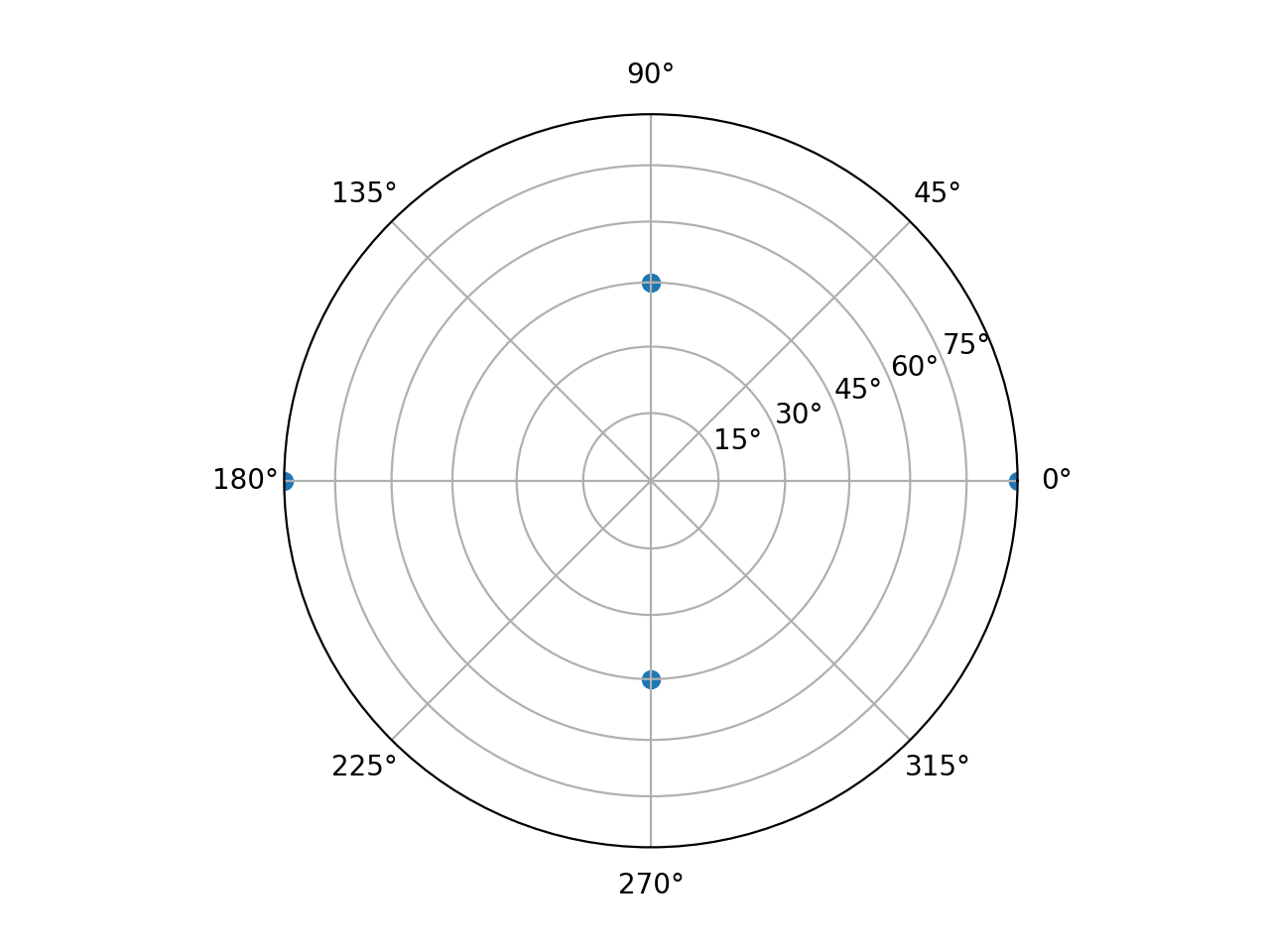

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-4.png

Plot the [110] pole figure of the gamma fibre texture:

from elasticipy.crystal_texture import FibreTexture
from orix.vector import Miller
from orix.crystal_map import Phase

gamma = FibreTexture.gamma()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,1,0], phase=phase)
gamma.plot_as_pole_figure(miller.symmetrise(unique=True))

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-5.png

sample(num=50, seed=None)[source]

Generate a random sample from the texture component

Parameters:

num (int, optional) – Number of random orientations to generate. Default is 50.
seed (int, optional) – Seed to use for generating random numbers. Default is None.

Returns:

Random orientations from the given texture

Return type:

orix.quaternion.Orientation

Examples

Generate 50 orientations from uniform distribution:

>>> from elasticipy.crystal_texture import UniformTexture
>>> o = UniformTexture().sample()

Generate 10 orientations from gamma-fibre

>>> from elasticipy.crystal_texture import FibreTexture
>>> o = FibreTexture.gamma().sample(num=10)

class elasticipy.crystal_texture.FibreTexture(orientation, axis, point_group=None)[source]

Bases: CrystalTexture

Create a fibre-type crystallographic texture

Parameters:

orientation (orix.quaternion.orientation.Orientation) – Reference orientation
axis (list or tuple or numpy.ndarray or orix.vector.Vector3D) – Axis of rotation (in sample CS)
point_group (orix.phase.point_group.PointGroup, optional) – Point group to use

classmethod alpha()[source]

Create an alpha fibre-texture: <110> || RD

Return type:: FibreTexture

See also

gamma: create an gamma fibre texture
epsilon: create an epsilon fibre texture

classmethod epsilon()[source]

Create an epsilon fibre-texture: <110> || TD

Return type:: FibreTexture

See also

gamma: create an gamma fibre texture
alpha: create an alpha fibre texture

classmethod from_Euler(phi1=None, Phi=None, phi2=None, degrees=True)[source]

Create a fibre texture by providing two fixed Bunge-Euler values

Parameters:

phi1 (float) – First Euler angle
Phi (float) – Second Euler angle
phi2 (float) – Third Euler angle
degrees (boolean, optional) – If true (default), the angles must be passed in degrees (in radians otherwise)

Return type:

FibreTexture

See also

from_Miller_axis: Define a fibre texture by aligning a miller direction with a given axis

Examples

A fibre texture corresponding to constant (e.g. zero) values for phi1 and phi2, and uniform distribution of Phi on [0,2π[, can be defined as follows:

>>> from elasticipy.crystal_texture import FibreTexture
>>> t1 = FibreTexture.from_Euler(phi1=0., phi2=0.)
>>> t1
Fibre texture
φ1= 0.0°, φ2= 0.0°

Similarly, the following returns a fibre texture for phi1=0 and Phi=0, and uniform distribution of phi2 on [0,2π[:

>>> t2 = FibreTexture.from_Euler(phi1=0., Phi=0.)
>>> t2
Fibre texture
φ1= 0.0°, ϕ= 0.0°

classmethod from_Miller_axis(miller, axis)[source]

Create a perfect fibre crystallographic texture

Parameters:

miller (orix.vector.miller.Miller) – Crystal plane or direction to align with the axis
axis (tuple or list) – Axis (in sample CS) to align with

Return type:

FibreTexture

See also

from_Euler: define a fibre texture from two Euler angles

Examples

Let’s consider a cubic poly-crystal (point group: m-3m), whose orientations are defined by a perfect alignment of direction <100> with the Z axis of a sample (therefore a uniform distribution around the Z axis). This texture can be defined as:

>>> from orix.crystal_map import Phase
>>> from orix.vector.miller import Miller
>>> from elasticipy.crystal_texture import FibreTexture
>>> phase = Phase(point_group='m-3m')
>>> m = Miller(uvw=[1,0,0], phase=phase)
>>> t = FibreTexture.from_Miller_axis(m, [0,0,1])
>>> t
Fibre texture
<1. 0. 0.> || [0, 0, 1]

classmethod gamma()[source]

Create a gamma fibre-texture: <111> || ND

Return type:: FibreTexture

See also

alpha: create an alpha fibre texture
epsilon: create an epsilon fibre texture

mean_tensor(tensor)[source]

Perform the texture-weighted mean of a 4th-order tensor.

Parameters:: tensor (SymmetricFourthOrderTensor) – Reference tensor (unrotated)
Returns:: mean value of the rotated tensor
Return type:: SymmetricFourthOrderTensor

plot_as_pole_figure(miller, n_orientations=100, fig=None, ax=None, projection='lambert', **kwargs)[source]

Plot the pole figure of the crystallographic texture

Parameters:

miller (orix.vector.miller.Miller) – Miller indices of directions/planes to plot
projection (str, optional) – Type of projection to use, it can be either stereographic or Lambert
fig (matplotlib.figure.Figure, optional) – Handle to existing figure, if needed
ax (matplotlib.projections.polar.PolarAxes, optional) – Axes to plot on
kwargs – Keyword arguments to pass to matplotlib’s scatter/plot functions

Returns:

matplotlib.figure.Figure – Handle to figure
matplotlib.projections.polar.PolarAxes – Axes where the pole figure is plotted

Examples

Plot the [100] pole figure of Goss texture:

from elasticipy.crystal_texture import DiscreteTexture
from orix.vector import Miller
from orix.crystal_map import Phase

goss = DiscreteTexture.Goss()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,0,0], phase=phase)
goss.plot_as_pole_figure(miller.symmetrise(unique=True))

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-6.png

Plot the [110] pole figure of the gamma fibre texture:

from elasticipy.crystal_texture import FibreTexture
from orix.vector import Miller
from orix.crystal_map import Phase

gamma = FibreTexture.gamma()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,1,0], phase=phase)
gamma.plot_as_pole_figure(miller.symmetrise(unique=True))

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-7.png

sample(num=50, seed=None)[source]

Generate a random sample from the texture component

Parameters:

num (int, optional) – Number of random orientations to generate. Default is 50.
seed (int, optional) – Seed to use for generating random numbers. Default is None.

Returns:

Random orientations from the given texture

Return type:

orix.quaternion.Orientation

Examples

Generate 50 orientations from uniform distribution:

>>> from elasticipy.crystal_texture import UniformTexture
>>> o = UniformTexture().sample()

Generate 10 orientations from gamma-fibre

>>> from elasticipy.crystal_texture import FibreTexture
>>> o = FibreTexture.gamma().sample(num=10)

class elasticipy.crystal_texture.UniformTexture[source]

Bases: CrystalTexture

Simple class to define the uniform texture over SO(3)

Create a uniform texture over SO(3)

mean_tensor(tensor)[source]

Perform the texture-weighted mean of a 4th-order tensor.

Parameters:: tensor (SymmetricFourthOrderTensor) – Reference tensor (unrotated)
Returns:: mean value of the rotated tensor
Return type:: SymmetricFourthOrderTensor

plot_as_pole_figure(miller, projection='lambert', fig=None, ax=None, **kwargs)[source]

Plot the pole figure of the crystallographic texture

Parameters:

miller (orix.vector.miller.Miller) – Miller indices of directions/planes to plot
projection (str, optional) – Type of projection to use, it can be either stereographic or Lambert
fig (matplotlib.figure.Figure, optional) – Handle to existing figure, if needed
ax (matplotlib.projections.polar.PolarAxes, optional) – Axes to plot on
kwargs – Keyword arguments to pass to matplotlib’s scatter/plot functions

Returns:

matplotlib.figure.Figure – Handle to figure
matplotlib.projections.polar.PolarAxes – Axes where the pole figure is plotted

Examples

Plot the [100] pole figure of Goss texture:

from elasticipy.crystal_texture import DiscreteTexture
from orix.vector import Miller
from orix.crystal_map import Phase

goss = DiscreteTexture.Goss()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,0,0], phase=phase)
goss.plot_as_pole_figure(miller.symmetrise(unique=True))

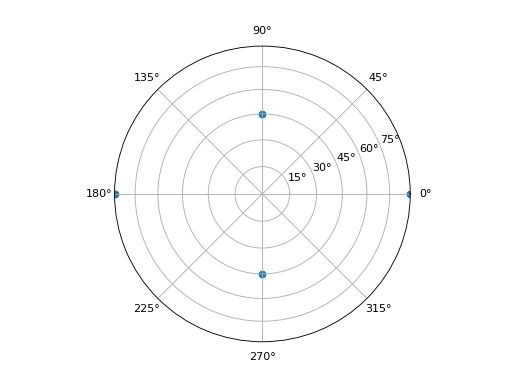

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-8.png

Plot the [110] pole figure of the gamma fibre texture:

from elasticipy.crystal_texture import FibreTexture
from orix.vector import Miller
from orix.crystal_map import Phase

gamma = FibreTexture.gamma()
phase = Phase(point_group='m3m') # BCC symmetry
miller = Miller([1,1,0], phase=phase)
gamma.plot_as_pole_figure(miller.symmetrise(unique=True))

(png, hires.png, pdf)

../_images/Elasticipy-crystal_texture-9.png

sample(num=50, seed=None)[source]

Generate a random sample from the texture component

Parameters:

num (int, optional) – Number of random orientations to generate. Default is 50.
seed (int, optional) – Seed to use for generating random numbers. Default is None.

Returns:

Random orientations from the given texture

Return type:

orix.quaternion.Orientation

Examples

Generate 50 orientations from uniform distribution:

>>> from elasticipy.crystal_texture import UniformTexture
>>> o = UniformTexture().sample()

Generate 10 orientations from gamma-fibre

>>> from elasticipy.crystal_texture import FibreTexture
>>> o = FibreTexture.gamma().sample(num=10)
